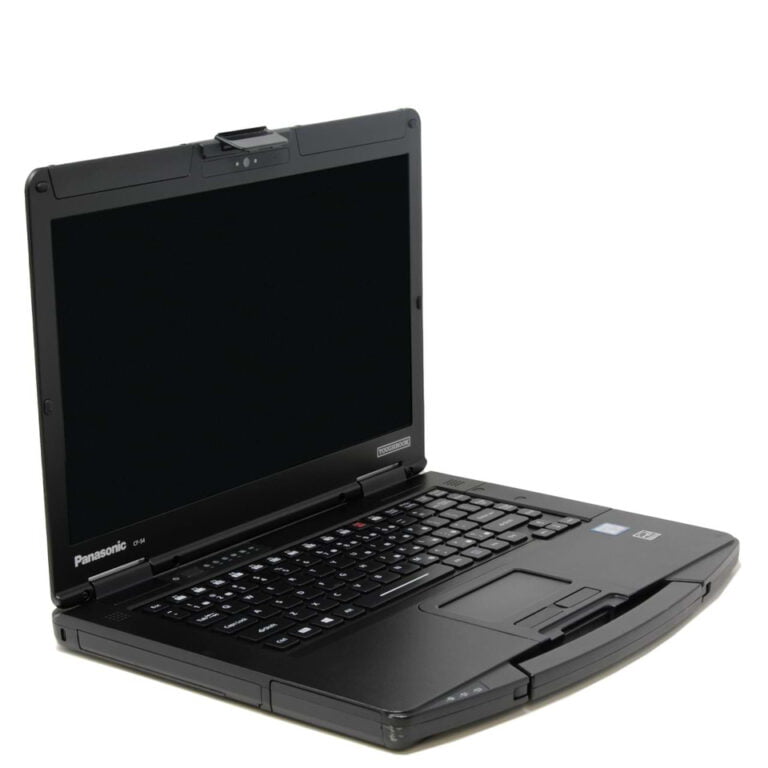

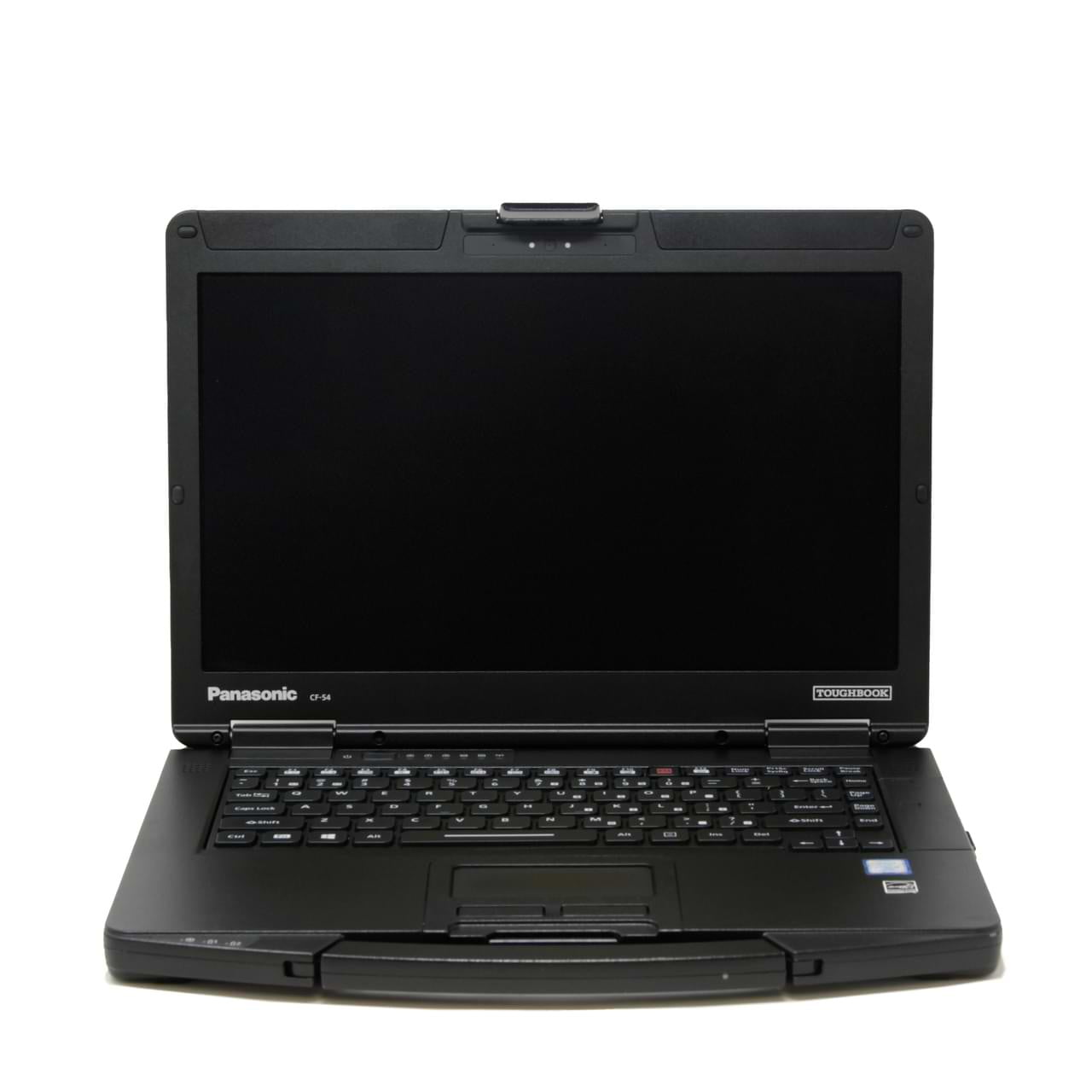

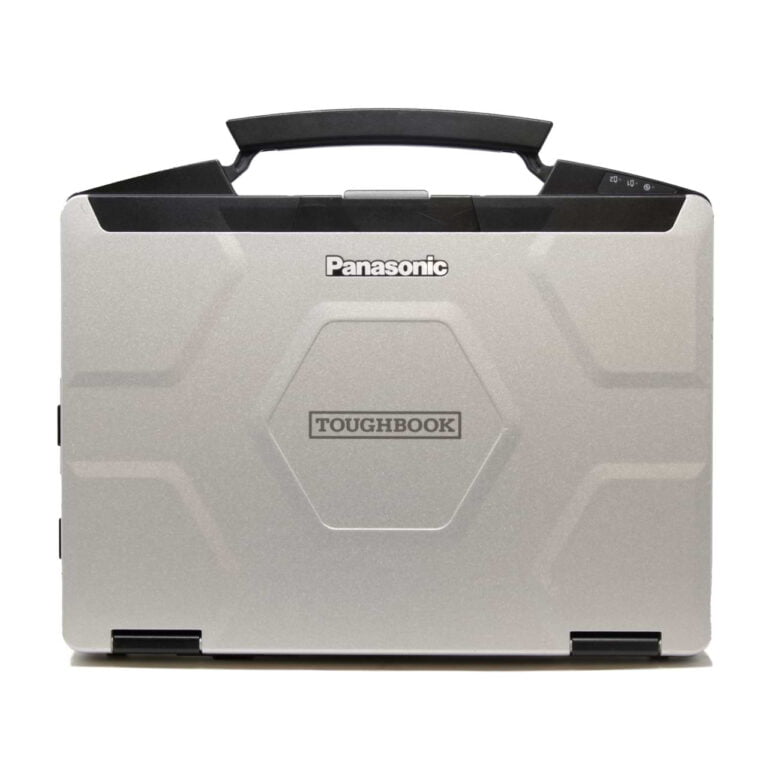

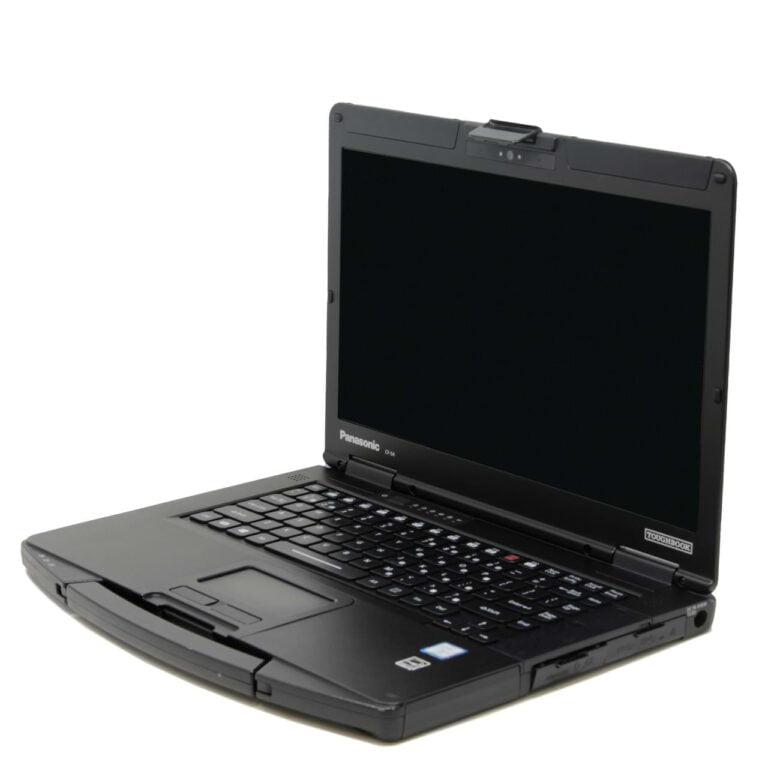

Panasonic Toughbook CF-54 Semi Rugged Laptop

Fully Rugged • Semi-Rugged Laptop Built to Perform Anywhere

The Panasonic TOUGHBOOK CF-54 stands as a rugged marvel engineered for professionals who demand strength, reliability, and uncompromising performance. Available in three generations—MK1, MK2, and MK3—this semi-rugged laptop blends cutting-edge durability with customizable performance options, making it ideal for field workers, defense teams, police forces, and mobile professionals across Pakistan.
✅ SOFTWARE:

Panasonic Utilities (including Dashboard)
Recovery Partition for quick system restoration
Enterprise-ready drivers: CAB files and one-click driver packages

🛡️ CERTIFICATIONS & DURABILITY:

MIL-STD-810G certified for shock, drop (up to 3′), vibration, sand, dust, altitude, temperature extremes, and humidity
IP51 rating – protection against dust and vertical water drops
Magnesium Alloy chassis with integrated carry handle
Spill-resistant keyboard and touchpad
Shock-mounted, caged storage drive with heater
Dual fans for performance models
Preinstalled screen protector (Gloved Multi Touch model)

💻 OPERATING SYSTEM OPTIONS:

Windows® 7 Pro (MK1 – downgrade from Win 8.1)
Windows® 10 Pro 64-bit (MK2 & MK3)
Upgrade-ready to Windows 11 Pro (MK3)

⚙️ CPU OPTIONS:
Model Processor Base / Turbo Clock Cache
MK1 Intel® Core™ i5-5300U 2.3GHz / 2.9GHz 3MB
MK2 Intel® Core™ i5-6300U 2.4GHz / 3.0GHz 3MB
MK2 Intel® Core™ i5-7300U 2.6GHz / 3.5GHz 3MB
MK3 Intel® Core™ i7-6600U 2.6GHz / 3.4GHz 4MB
MK3 Intel® Core™ i7-7600U 2.8GHz / 3.9GHz 4MB
🧠 MEMORY (RAM):

4GB / 8GB / 16GB DDR3L or DDR4 (based on generation)
Expandable up to 32GB (2 slots, tool-accessible)

💾 STORAGE:

256GB SSD (Standard)
Optional: 500GB HDD / 512GB SSD / 1TB SSD / OPAL-encrypted SSD
Quick-release, shock-mounted with integrated heater
Optional second storage drive (technician accessible)

🖥️ DISPLAY & GRAPHICS:

14.0″ Display Options:
HD (1366 x 768) – Lite & Prime
FHD (1920 x 1080) – Performance & Gloved Multi Touch
Touchscreen (capacitive, glove + rain mode) on select models
1000 nits brightness (Touchscreen model)
IPS technology with direct bonding (FHD)
Anti-glare & anti-reflective coating
Intel® HD Graphics 520 / 620
Optional: AMD FirePro™ M5100 / Radeon™ Pro WX 4150 (Performance models)
Triple monitor support via HDMI + VGA

🎧 AUDIO:

Dual integrated microphones
High-definition stereo speakers
Hardware volume and mute keys

📸 CAMERA:

Optional 2MP or 1080p HD webcam with privacy shutter (standard in MK3)
Dual mics and LED on/off indicator

⌨️ INPUT DEVICES:

Full-size 87-key keyboard
Red backlit (MK2 & MK3), White backlit (MK1)
Electrostatic multi-touch touchpad
Optional stylus pen with holder (Touch models)
2 customizable keys (A1/A2)

📀 DVD & MEDIA:

Optional DVD Super Multi Drive (media bay)
Optional secondary battery, PC Card, or SmartCard CAC reader in bay

🔌 INTERFACE & PORTS:

USB 3.0 x 3 (1 with 1.5A power output)
Optional USB 2.0, Rugged Fischer USB, or 4th USB port
HDMI + Optional VGA (D-Sub 15-pin)
SDXC card slot (UHS-II)
RJ-45 LAN + Optional second LAN port
Optional Serial (True RS-232), PC Card Type II
Audio In/Out Combo Jack
Mini-SIM Slot
Docking Connector (24-pin or 100-pin depending on generation)

📡 WIRELESS & CONNECTIVITY:

Intel® Dual Band Wi-Fi (7260 / 8260 / 8265 – varies by model)
Bluetooth® v4.0 / v4.1 + EDR (Class 1)
Optional 4G LTE Advanced with GPS (u-blox)
Certified with Verizon, AT&T, Sprint (in USA – unlocked in PK)
Optional dual high-gain antenna pass-through

🔋 BATTERY & POWER:

Standard: 6-cell Li-Ion Battery (approx. 4200mAh)
Optional: Lightweight or Media Bay 2nd Battery
Battery Life:
Lite: 7–9 hrs (up to 16 hrs with 2nd battery)
Prime/Touch/Performance: 10–12 hrs (up to 20 hrs with 2nd battery)
Hot-swappable support
Quick Charge: 80% in ~1 hour
AC Adapter: 100–240V auto-sensing global PSU

🔐 SECURITY:

TPM v1.2 / v2.0 (varies by MK)
Kensington lock slot
Absolute® Persistence Module in BIOS
Optional:
Fingerprint Reader
Insertable SmartCard CAC reader (bottom)
Contactless SmartCard CAC (ISO 14443 A/B, 13.56MHz)
NFC and BIOS password protection

📏 DIMENSIONS & WEIGHT:

Dimensions: 13.6″ (W) x 10.7″ (D) x 1.2″ (H)
Weight:
Lite: 4.2 lbs (1.9kg)
Prime: 4.4 lbs
Performance/Touchscreen: 4.6 lbs (2.1kg)

🎒 ACCESSORIES (Optional):

AC Adapter: CF-AA5713AM
Port Replicator: CF-VEB541
Battery Charger: CF-VCBTB2W
Stylus: FZ-VNPM11U
Screen Protector Film: CF-VPF25U
Tether Cable: CF-VNT002U

🧱 RUGGEDNESS AT ITS CORE:

Magnesium alloy chassis with honeycomb design
MIL-STD-810G tested for rugged use
Drop resistance: 76cm (MK1) and 91cm (MK3)
Weather tested for rain, dust, and high/low temperature use
Operating temp: -10°C to 50°C

📦 AVAILABLE VARIANTS:
Variant Processor Display Touch RAM Storage
CF-54 MK1 i5-5300U FHD No 8GB 500GB HDD
CF-54 MK2 i5-6300U FHD No 16GB 256GB SSD
CF-54 MK2 i5-7300U FHD Touch 16GB 512GB SSD
CF-54 MK3 i7-6600U FHD No 16GB 256GB SSD
CF-54 MK3 i7-7600U FHD Touch 32GB 1TB SSD
🌐 Ideal for:

Field Engineering
Law Enforcement
Warehousing
Automotive Diagnostics
Military & Tactical Use
Outdoor Business Operations in Pakistan

🔒 Backed by Panasonic’s legendary TOUGHBOOK reliability. Built for the most demanding environments across Karachi, Lahore, Islamabad, and beyond.
📞 Contact us today for availability and customized configurations.
